Econo-Heat High Temperature Furnaces

Tech Bulletin E2

Aremco’s Econo-Heat™ Furnaces are offered in standard sizes from 0.5 to 7.5 cubic feet for applications to 2350 °F. All furnaces are ruggedly constructed and energy efficient, and a wide range of temperature controls are offered for every type of use. Custom features and sizes are also available upon request.

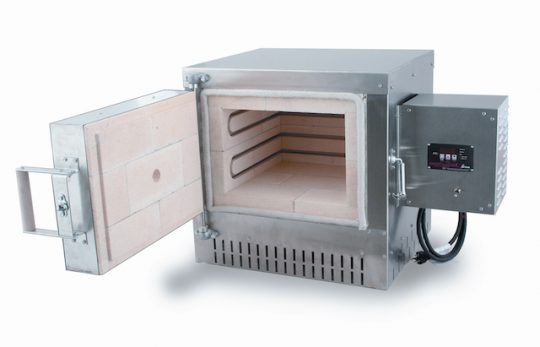

Econo-Heat™ 2928 with analog controller
Econo-Heat High Temperature Furnaces
Model
Inside Dimensions

2927
8.50” x 9.00” x 8.75”

2928
13.00” x 13.50” x 8.75”

2929
22.00” x 22.00” x 13.50”


Model
Inside Dimensions

2930
15.00” x 18.00” x 15.00”

2931
17.00” x 17.00” x 20.00”

2932
21.50” x 21.50” x 24.50”


  • All furnaces are built with 3″ premium insulating firebrick and 1″ fiber board to permit rapid firing.
  • Elements are protected in dropped recessed side wall grooves to provide even heating, longer life, and easy replacement.
  • Outer shells are constructed using stainless steel to improve the casing resistance to high temperatures.
  • Front-loading and top-loading door styles are offered.
  • Alternate power requirements for domestic and international use are easily accommodated.
  • Replacement elements are available on a just-in-time basis.
  • All models are built with a standard multi-step temperature controller.

  • Ash Determinations
  • Assaying
  • Tempering
  • Hardening
  • Heat Treating
  • Glass Annealing
  • Melting
  • Fusions
  • Dry Precipitates
  • Curing Plastics
  • Thermal Cycling
  • Carbon & Sulphur Tests
  • Cement Tests
  • Glass & Enamel Tests
  • Jominy Hardness Tests
  • Petroleum Tests
  • Powder Metallurgy
  • Thermocouple Standardization
  • Ceramic Tests
  • Ignitions
